Animation laser, DMX512, AUTO, Sound, ILDA, SD control,128 patterns, ANG modulation, with 40K scanner Download Laser PRO RGB Seriese PDF


Laser RGB SeriseLaser RGB Serise
Product NameTechnical specifications:DESCRIPTION

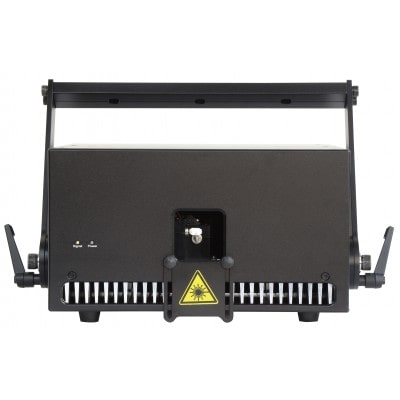

10W RGB Laser Light
Output red3000mw/638nm
Output green3000mw/520nm
Output blue4000mw/445nm
Scannerwith 40K
laser class:4
operation modes: animation laser,ILDA in/out,X/Y axix,power knobs,40K scanner
basic patterns:128
beam specifications:ColorDisvergencesize at aperature
Red:638nm 1.2mrad 4*2mm
Green:520nm 1.2mrad 4*2mm
Blue:445nm 1.2mrad 4*2mm
Laser safety: Laser safety according to EN 60825: Key switch, Interlock interface.
Overload protection on X and Y Galvo for best safeguarding against failure.
Mechanical shutter optionally available.
accessories: power cable, manual, interlock adapter, key switch;
power supply:110-120V/220-240V switchable AC 50/60Hz
power consumption:120W
Net weight 15KG with carton package,22KG with flight case
Case Size(cm)30.8cm*16.8cm*29.0cm

Animation laser,DMX512, AUTO ,Sound ,ILDA,SD control,128 patterns ,ANG modulation, with 40K scanner.


Laser RGB SeriseLaser RGB Serise
Product NameTechnical specifications:DESCRIPTION
12W RGB Laser Light
Output red3000mw/638nm
Output green3000mw/520nm
Output blue4000mw/445nm
Scannerwith 40K
laser class:4
operation modes: animation laser,ILDA in/out,X/Y axix,power knobs,40K scanner
basic patterns:128
beam specifications:ColorDisvergencesize at aperature
Red:638nm 1.2mrad 4*2mm
Green:520nm 1.2mrad 4*2mm
Blue:445nm 1.2mrad 4*2mm
Laser safety: Laser safety according to EN 60825: Key switch, Interlock interface.
Overload protection on X and Y Galvo for best safeguarding against failure.
Mechanical shutter optionally available.
accessories: power cable, manual, interlock adapter, key switch;
power supply:110-120V/220-240V switchable AC 50/60Hz
power consumption:120W
Net weight17.3KG & 30KG with case
Case Size(cm)37*33.6*18.5cm

Animation ,DMX512, AUTO ,Sound, ILDA,SD control,128 patterns ,ANG modulation ,with 40K scanner


Laser RGB SeriseLaser RGB Serise
Product NameTechnical specifications:DESCRIPTION

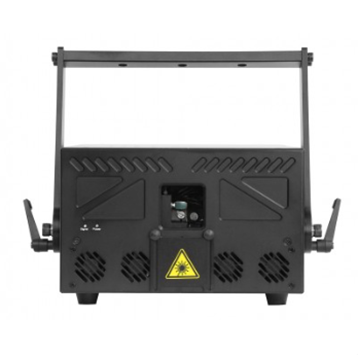

15W RGB Laser Light
Output red4000mw/638nm
Output green5000mw/520nm
Output blue6000mw/445nm
Scannerwith 40K
laser class:4
operation modes: ILDA in/out ,X/Y axis ,power knobs,40K scanner
basic patterns:128
beam specifications:ColorDisvergencesize at aperature
Red:638nm 1.2mrad 4*2mm
Green:520nm 1.2mrad 4*2mm
Blue:445nm 1.2mrad 4*2mm
accessories: power cable, manual, interlock adapter, key switch;
power supply:110-120V/220-240V switchable AC 50/60Hz
power consumption:120W
Net weight31KG & ,52KG with case
Case Size(cm)40x41x26cm

Animation laser ,ILDA control, ANG , IP52 protection rate ;Best quality adjustable holders and dichroic mirrors.


Laser RGB SeriseLaser RGB Serise
Product NameTechnical specifications:DESCRIPTION

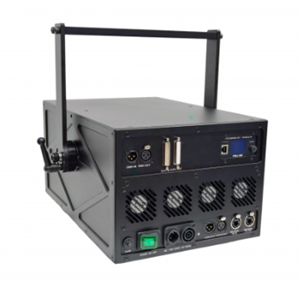

Pro RGB 24W
Output red>6Wmw/638nm
Output green>8Wmw/520nm
Output blue>10W/445nm
laser source:ANG/TTL, DT50BB scanner
operation modes: Animation laser ,ILDA in/out, X/Y axis, power knobs
basic patterns:128
beam specifications:ColorDisvergencesize at aperature
Red 1.3mrad 6*6mm
Green 1.3mrad 5*5mm
Blue 1.3mrad 4*4mm
Laser safety: Laser safety according to EN 60825: Key switch, Interlock interface.
Overload protection on X and Y Galvo for best safeguarding against failure.
Mechanical shutter optionally available.
accessories: power cable, manual, interlock adapter, key switch;
power supply:110-120V/220-240V switchable AC 50/60Hz
power consumption:120W
Net weight29KG net weight,46KG with case
Case Size(cm)Size(cm)37.6*33.2*26.7

Animation laser,ILDA control,ANG , IP52 protection rate;Best quality adjustable holders and dichro mirrors.


Laser RGB SeriseLaser RGB Serise
Product NameTechnical specifications:DESCRIPTION
30W RGB Laser Light
Output red>8Wmw/638nm
Output green>10Wmw/520nm
Output blue>12W/445nm
laser source:ANG/TTL, 50K scanner
laser class:4
operation modes: Animation laser ,ILDA in/out, X/Y axis, power knobs
basic patterns:128
beam specifications:ColorDisvergencesize at aperature
Red 1.3mrad 4*2mm
Green 1.3mrad 4*4mm
Blue 1.3mrad 4*4mm
Laser safety: Laser safety according to EN 60825: Key switch, Interlock interface.
Overload protection on X and Y Galvo for best safeguarding against failure.
Mechanical shutter optionally available.
accessories: power cable, manual, interlock adapter, key switch;
power supply:110-120V/220-240V switchable AC 50/60Hz
power consumption:120W
Net weight37KG net weight, 58KG with case
Case Size(cm)S48cm*48cm*21.9cm

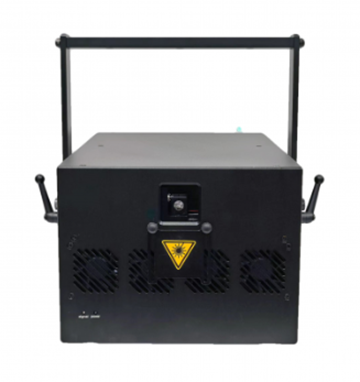

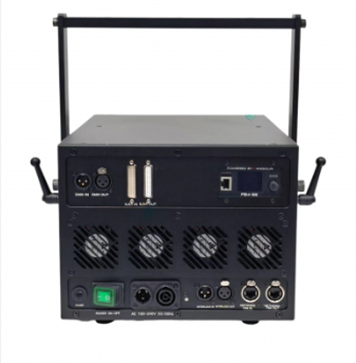

Product Type - 20W RGB Laser Light


Laser RGB SeriseLaser RGB Serise


Model Name/Number20W RGB Laser Light
Lighting TypeLED
Usage/ApplicationDecoration
Wattage20
Type Of LightLED
Lighting ColorRGB
Materialmetal
Body MaterialAluminum
Weight10.820 kg
Weight With box18.080 kg
Laser ColorRGB Multi -Colors+ single colors
StyleDMX Stage Light
Power350W
Play modeAuto, Sound active, DMX ,ELDA ,SD card
Power buttonpower and brightness adjustment
Accessories power con cable, 4G SD card,manual,key,DB25 and RJ45 converter

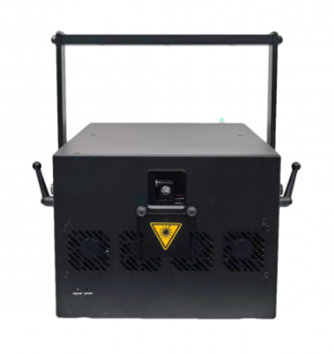

Product Type - 40W RGB Laser Light



Laser RGB SeriseLaser RGB Serise

Model Name/Number40W RGB Laser Light
Lamp Luminous Efficiency lm/w155
Color Rendering Index(Ra)90
Support DimmerYes
Lifespan (hours)10000
Working Time (hours)10000
Input Voltage(V)100~240V
Lamp Luminous Flux(lm)10000
CRI (Ra>)85
Working Temperature(℃)-20 - 40
Working Lifetime(Hour)10000
IP RatingIp44
Light SourceLED
Typelaser light
Power40W
ColorRGB
Operation modeAuto,Sound,ILDA,FB4,DMX512,Master/Slave
light sourcespure diode laser
IP rateIP44


Product Type - 60W RGB Laser Light



Laser RGB SeriseLaser RGB Serise


Product Type60W RGB Laser Light
Model NOD1-RGB60W
Size71 x 51 x 44 cm
ColorMULTICOLORED
Weight36.444 kg
Weigh with Box59.860 kg
Light Source60W RGB Laser Diode
Emitting ColorRGB
Lamp Power3000W
Laser Head NumbersSingle-head
Demonstration EffectAnimation
Control ModeDMX512, Master/Slave, Sound Active, Auto, ELDA, Cat 5
BaseE27
UsageStage, Laser, Laser Module, Laser Pointer
ApplicationOutdoor
Operating Voltage100-240V
Size71 x 51 x 44 cm
